CryoJane™ Tape-Transfer System，可切取 2 micros 超薄冷凍切片，提升切片品質，避免破片、組織變形，可以解決fatty tissue & undecal cified bone 的切片問題，適用于 LCM 使用者。

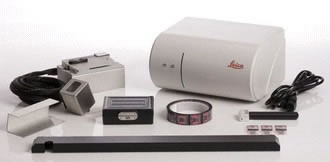

整個系統含以下內容物：
1. Flash-Pad Mechanism
2. Electronics Control Unit
3. Power Cord
4. Door Channel
5. Storage Shelf
6. Hand Roller
7. 125 Adhesive- Coated Slides
8. Roll of 400 Tape Windows
9. 2 Knife Facet Wipers
10. Spare Fuse and 5 Block Holders (optional)
訂購信息：
|
貨號 |
產品名稱 |
規格 |
|
62800-20 |
CryoJane™ Tape-Transfer System冷凍切片質量提升系統 |
220Volt |

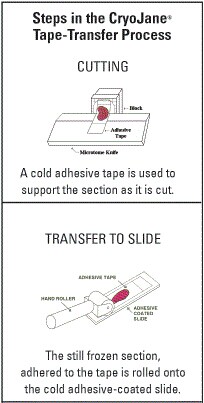

使用步驟如下：
1. 將TAPE WINDOWS (組織貼片帶) 貼在蠟塊表面
2. 用鋒利的切片刀切出適當厚度的frozen section
3. 將整片粘有組織的 TAPE WINDOWS (組織貼片) 移到Adhensive coated slides
4. 利用hand roller 將組織貼片更加平貼在slides上
5. 將slides 移到Flash-Pad (UV 燈箱)中照射數秒
6. UV會將slides上的coating轉換成可固定住組織的solvent-resistant plastic
7. 移除(組織貼片帶)
8. 可以繼續后續的fixation & staing步驟
CryoJane™小附件簡介：
訂購信息：
|
貨號 |
產品名稱 |
產品描述 |
規格 |
|
62800-40 |
Block-Holder |
Deep-waffled, large face block-holder securely anchors frozen embedding medium or tissue. |
5/包 |
|
62800-44 |
Microtome Chuck Adapter |
Adapts to the microtome chuck for the use of Block-Holders above. (Please specify cryostat model when ordering.) |
1 |
|
62800-46 |
Hand Roller |
Required in the CryoJane™ process for laminating Tape Window to block-face |
1 |
|
62800-48 |
Storage Shelf |
Used for storing Adhesive Coated Slides and Tape Window inside the cryostat. |
1 |
|
62800-50 |
Door Channel |
Please specify model cryostat and whether Cryo-Vac-Away is installed. |
1 |
|
62800-53 |
Fuses-1-Amp |
SLO-BLOW ceramic core wound. Used in the CryoJane™ ECU |
5/包 |
|
62800-X |
Adhesive Slides |
Glass slide with adhesive coating, when polymerized, bonds the still-frozen section from the tape to the slide. Avoid thawing the section. ½ x coating slides for mild to normal tissues. |
125/包 |
|
62800-1X |
Adhesive Slides |
Glass slide with adhesive coating, when polymerized, bonds the still-frozen section from the tape to the slide. Avoid thawing the section. 1x coating slides for mild to normal tissues. |
125/包 |
|
62800-4X |
Adhesive Slides |
Glass slide with adhesive coating, when polymerized, bonds the still-frozen section from the tape to the slide. Avoid thawing the section. 4x coating slides for use with hard un-calcified bone) or fatty tissues. |
100/包 |
|
62800-72 |
Tape Windows |
Applied to the block-face with the Hand Roller to capture the frozen section as it is being cut. Eliminate the need for a brush or anti-roll device. |
200/包 |
|
62800-74 |
Protective Oil |
Used for coating frozen section blocks to prevent dehydration during long-term storage. |
4OZ |
|
62803-30 |
Protective Oil Accessories Kit |
Temperature controlled Oil Bath, 4 oz Bottle of Protective Oil, and Oil Brush. Please note that installation of the Protective Oil Bath Accessory requires that the CryoJane™ system be returned to Electron Microscopy Sciences. |
1 |
|
62800-76 |
Aqueous Buffer Salt Mix |
Used in the preparation of the aqueous fixative, which preserves morphological detail in frozen sections. 2 vials per package, (each vial makes 180 ml of buffer). |
2/包 |
|
62800-78 |
Knife Facet Wipers |
Effectively cleans both facets of knife-edge without dulling the blade. 10 wipers/pack |
10/包 |
