套裝包含下列配件：

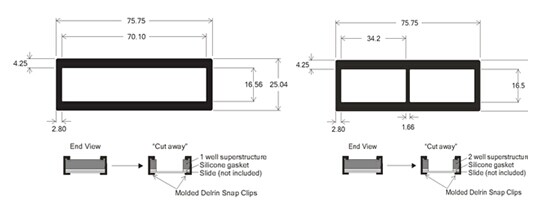

l 4個玻片艙slide module：玻片艙由兩部分組成，molded upper structure（柔性塑料件）和silicone gasket（硅膠密封墊）
l 8個塑料固定彈性夾snap clip：注意：彈性夾有兩種，一種mold Delrin snap clips（塑料彈性夾），一種Stainless Steel Spring Clips（不銹鋼彈性夾），如果使用不銹鋼彈性夾，標準盤僅可以放置3個玻片艙。

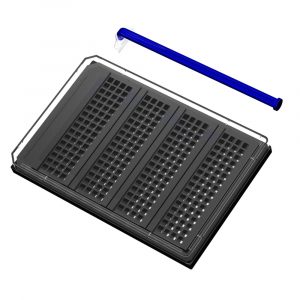

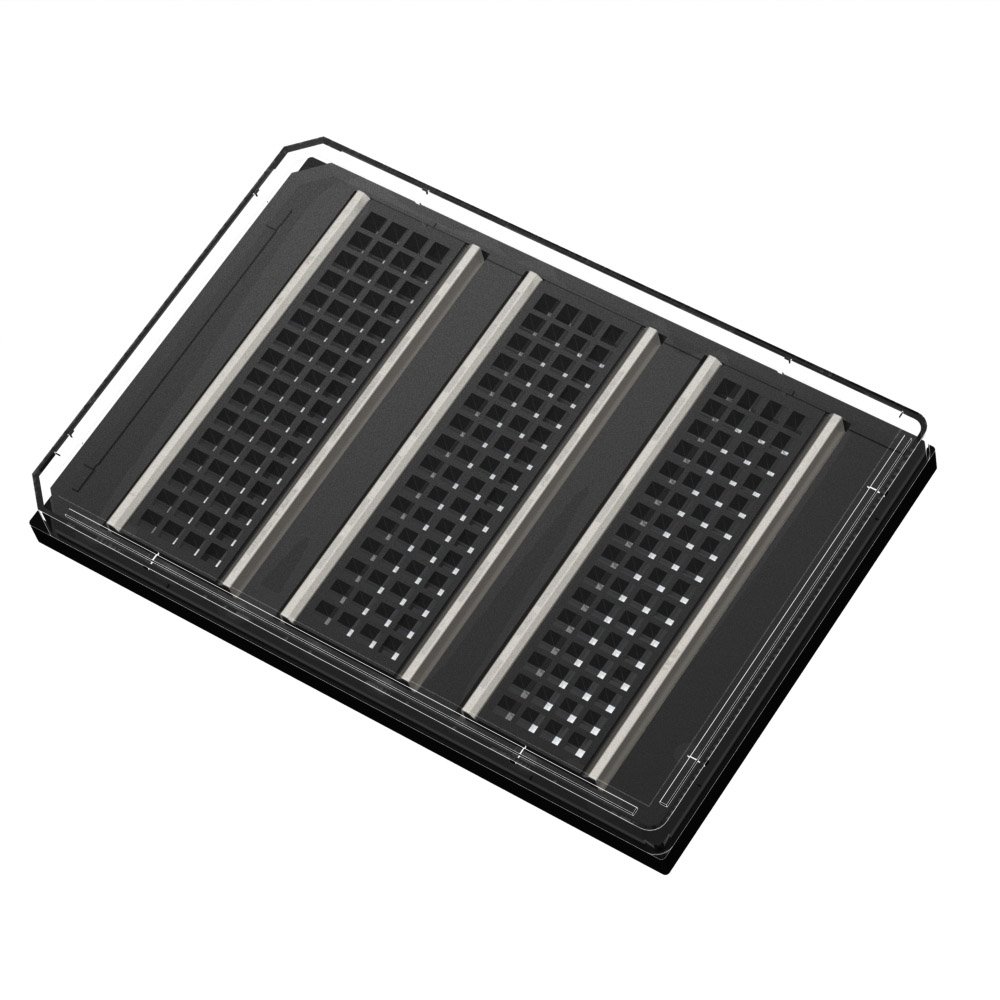

l 1個標準盤和配套蓋子tray and cover：盤大小81.7mm width x 123.7mm length
l 10個密封條seal strips
l 1個密封推拉棒SealStrip applicator
注意：本套裝不包含載玻片！使用本套裝需要自購不帶漆邊的載玻片！
套裝產品系列：
|
貨號 |
產品名稱 |
規格 |
|
246881 |
1 Well ProPlate Tray set，3 - 16.5 x 70 mm，1 Well module, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
246882 |
2 Well ProPlate Tray set，3 – 16.5 x 34 mm, 2 Well Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
246883 |
3 Well ProPlate Tray set，3 – 18 x 20 mm, 3 Well Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
246884 |
4 Well ProPlate Tray set，3 – 16 x 16 mm, 4 Well Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
246888 |
8 Well ProPlate Tray set，3 – 7 x 16 mm, 8 Well Slide Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
246880 |
16 Well ProPlate Tray set，3 – 6 mm Diameter, 16 Well Slide Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
246890 |
16 Well ProPlate Tray set，3 – 7 x 7 mm, 16 Well, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
249865 |
64 Well ProPlate Tray set，3 – 3.5 x 3.5 mm, 64 Well Slide Modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
247881 |
1 Well ProPlate Tray set，4 – 16.5 x 70 mm Well Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
247882 |
2 Well ProPlate Tray set，4 – 16.5 x 34 mm, 2 Well Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
247883 |
3 Well ProPlate Tray set，4 – 18 x 20 mm, 3 Well Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
247884 |
4 Well ProPlate Tray set，4 – 16 x 16 mm, 4 Well Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
247888 |
8 Well ProPlate Tray set，4 – 7 x 16 mm, 8 Well Slide Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
247880 |
16 Well ProPlate Tray set，4 – 6 mm Diameter, 16 Well Slide Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
204860 |
16 Well ProPlate Tray set，4 – 7 x 7 mm, 16 Well Slide Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
|
247865 |
64 Well ProPlate Tray set，4 – 3.5 x 3.5 mm, 64 Well Slide Modules, Delrin Snap Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator |
1套 |
1.玻片艙產品系列（ProPlate™slide module）：
|
貨號 |
產品名稱 |
規格 |
|
246851 |
1 well ProPlate™slide module / 16.5mm X 70mm, WITHOUT CLIPS |
10個/包 |
|
246852 |
2 well ProPlate™slide module only / 16.5mm X 34mm, WITHOUT CLIPS |
10個/包 |
|
246853 |
3 well ProPlate™slide module only / 18mm X 20mm, WITHOUT CLIPS |
10個/包 |
|
246854 |
4 well ProPlate™slide module only / 16mm X 16mm, WITHOUT CLIPS |
10個/包 |
|
246858 |
8 well ProPlate™slide module only / 7mm X 16mm, WITHOUT CLIPS |
10個/包 |
|
246850 |
16 round well ProPlate™slide module only / 6mm DIA, WITHOUT CLIPS |
10個/包 |
|
206862 |
16 well ProPlate™slide module only / 7mm X 7mm, WITHOUT CLIPS |
10個/包 |
|
246855 |
64 well ProPlate™slide module only / 3.5mm X 3.5mm, WITHOUT CLIPS |
10個/包 |
|
246861 |
1 well ProPlate™slide module / 16.5mm X 70mm, DELRIN SNAP CLIPS |
2個/包 |
|
246862 |
2 well ProPlate™slide module / 16.5mm X 34mm, DELRIN SNAP CLIPS |
2個/包 |
|
246863 |
3 well ProPlate™slide module / 18mm X 20mm, DELRIN SNAP CLIPS |
2個/包 |
|
246864 |
4 well ProPlate™slide module / 16mmX 16mm, DELIRN SNAP CLIPS |
2個/包 |
|
246868 |
8 well ProPlate™slide module / 7mmX 16mm, DELRIN SNAP CLIPS |
2個/包 |
|
246860 |
16 round well ProPlate™slide module / 6mm DIA, DELRIN SNAP CLIPS |
2個/包 |
|
204862 |
16 well ProPlate™slide module / 7mmX 7mm, DELRIN SNAP CLIPS |
2個/包 |
|
246865 |
64 well ProPlate™slide module / 3.5mm X 3.5mm, DELRIN SNAP CLIPS |
2個/包 |
|
248861 |
1 well ProPlate™slide module / 16.5mm X 70mm, STAINLESS STEEL SNAP CLIPS |
2個/包 |
|
248862 |
2 well ProPlate™slide module / 16.5mm X 34mm, STAINLESS STEEL SNAP CLIPS |
2個/包 |
|
248863 |
3 well ProPlate™slide module / 18mm X 20mm, STAINLESS STEEL SNAP CLIPS |
2個/包 |
|
248864 |
4 well ProPlate™slide module / 16mmX 16mm, STAINLESS STEEL SNAP CLIPS |
2個/包 |
|
248868 |
8 well ProPlate™slide module / 7mmX 16mm, STAINLESS STEEL SNAP CLIPS |
2個/包 |
|
248860 |
16 round well ProPlate™slide module / 6mm DIA, STAINLESS STEEL SNAP CLIPS |
2個/包 |
|
244862 |
16 well ProPlate™slide module / 7mmX 7mm, STAINLESS STEEL SNAP CLIPS |
2個/包 |
|
248865 |
64 well ProPlate™slide module / 3.5mm X 3.5mm, STAINLESS STEEL SNAP CLIPS |
2個/包 |
2.硅膠密封墊（silicone gasket only）系列：
|
貨號 |
產品名稱 |
孔數 |
孔大小 |
規格 |
|
246871 |
silicone gasket only |
1 Well |
16.5 x 70 mm |
10個/包 |
|
246875 |
silicone gasket only |
2 Well |
16.5 x 24 mm |
10個/包 |
|
246873 |
silicone gasket only |
3 Well |
16 x 20 mm |
10個/包 |
|
246874 |
silicone gasket only |
4 Well |
16 x 16 mm |
10個/包 |
|
246878 |
silicone gasket only |
8 Well |
7 x 16 mm |
10個/包 |
|
246877 |
silicone gasket only |
16 Well |
6 mm Diameter |
10個/包 |
|
205005 |
silicone gasket only |
16 Well |
7 x 7 mm |
10個/包 |
|
246875 |
silicone gasket only |
64 Well |
3.5 x 3.5 mm |
10個/包 |
3.其它配件(密封條、推拉棒)：
|
貨號 |
產品描述 |
規格 |
|
204874 |
Seal Strips (50) and Seal Strip Applicator
|
50/包 |
|
204830 |
ProPlate Delrin, Non-Numbered Snap Clips
|
20/包 |
|
204838 |
ProPlate Stainless Steel Spring Clips
|
20/包 |
|
204870 |
ProPlate Tray and Cover for Snap Clip Modules Holds 4 Slide Modules |
|
|
246870 |
ProPlate Tray and Cover for Spring Clip Modules Holds 3 Slide Modules |
|
